IZ1583 step-down regulator

Integral

Description

IZ1583 General .
The IZ1583 is a step-down regulator with a built in internal power MOSFET.

📥 Download Datasheet

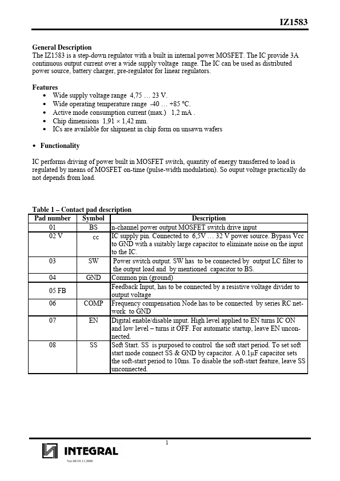

IZ1583 Datasheet Preview — Preview of IZ1583 PDF

Datasheet Specifications

Part number: IZ1583
Manufacturer: Integral
File Size: 176.73 KB
Datasheet: IZ1583-Integral.pdf
Description: step-down regulator

Features

* Wide supply voltage range 4,75 … 23 V.
* Wide operating temperature range -40 … +85 oC.
* Active mode consumption current (max. ) 1,2 mA .
* Chip dimensions 1,91 × 1,42 mm.
* ICs are available for shipment in chip form on unsawn wafers
* Functionality
