IZ1937

White LED Step-Up Converter

IZ1937 Features

* Internally determined LED current

* High Efficiency: 84% Typical

* Drives Up to 4 LEDs from a 3.2V Supply

* Drives Up to 6 LEDs from a 5V Supply

* 36V rugged bipolar switch

* Fast 1.2MHz switching frequency

* Uses tiny 1mm Tall Inductors

IZ1937 General Description

The IZ1937 is a step-up DC/DC converter specifically designed to drive white LEDs with a constant current. The device can drive two, three or four LEDs in series from a Li-Ion battery. Series connection of the LEDs provides identical LED currents resulting in uniform brightness and eliminating the n.

IZ1937 Datasheet (127.27 KB)

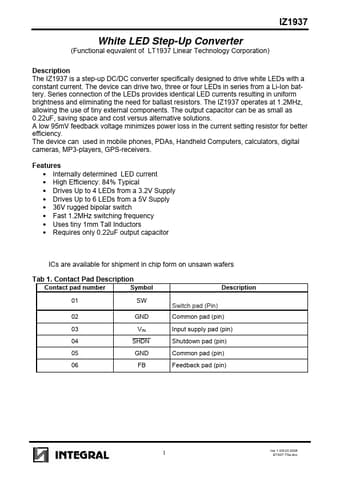

Preview of IZ1937 PDF

Datasheet Details

Part number:

IZ1937

Manufacturer:

Integral

File Size:

127.27 KB

Description:

White led step-up converter.
