ICS83905AKT, LOW SKEW/ 1:6 CRYSTAL INTERFACE-TOLVCMOS / LVTTL FANOUT BUFFER

PRELIMINARY Integrated Circuit Systems, Inc.ICS83905 LOW SKEW, 1:6 CRYSTAL INTERFACE-TOLVCMOS / LVTTL FANOUT BUFFER .
The ICS83905 is a low skew, 1-to-6 LVCMOS / LVTTL Fanout Buffer and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock Solutio.

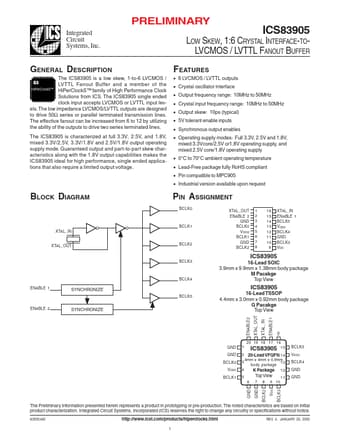

datasheet Preview Page 1 from Datasheet4u.com

ICS83905AKT_IntegratedCircuitSystems.pdf

ICS83905AKT Datasheet Preview — Preview of ICS83905AKT PDF

Datasheet Details

Part number:

ICS83905AKT

Manufacturer:

Integrated Circuit Systems

File Size:

362.46 KB

Description:

LOW SKEW/ 1:6 CRYSTAL INTERFACE-TOLVCMOS / LVTTL FANOUT BUFFER

Features

* 6 LVCMOS / LVTTL outputs
* Crystal oscillator interface
* Output frequency range: 10MHz to 50MHz
* Crystal input frequency range: 10MHz to 50MHz
* Output skew: 10ps (typical)
* 5V tolerant enable inputs
* Synchronous output enables

Applications

* that also require a limited output voltage. BLOCK DIAGRAM PIN ASSIGNMENT BCLK0 XTAL_OUT ENABLE 2 GND BCLK0 VDD o BCLK1 GND BCLK2 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 XTAL_IN ENABLE 1 BCLK5 VDDO BCLK4 GND BCLK3 VDD BCLK1 XTAL_IN BCLK2 XTAL_OUT ICS83905 BCLK3 BCLK4 ENABLE 1 16-Lead SOIC 3.9mm
