ICS843-75 LVPECL DUAL OUTPUT OSCILLATOR

The ICS843-75 is a SAS/SATA Dual Output Oscillator and a member of the HiPerClocks TM HiPerClockS™ family of high performance devices from ICS. The ICS843-75 uses a 25MHz crystal to s y n t h e s i ze 7 5 M H z . T h e I C S 8 4 3 - 7 5 h a s excellent jitter performance. The ICS843-75 is packaged i.

ICS843-75 Features

* One LVCMOS/LVTTL output, 15Ω output impedence One LVPECL output pair

* Crystal oscillator interface designed for 25MHz, 18pF parallel resonant crystal

* Output frequency: 75MHz

* Random jitter: 3.07ps (maximum)

* Deterministic jitter: 0.13ps (maximum)

ICS843-75_IntegratedCircuitSystems.pdf

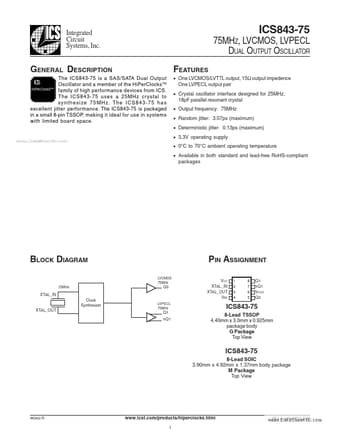

ICS843-75 Datasheet Preview — Preview of ICS843-75 PDF
