ICS843023I Datasheet - Integrated Circuit Systems

ICS843023I FEMTOCLOCKS CRYSTAL-TO-3.3V 2.5V LVPECL CLOCK GENERATOR

The ICS843023I is a Gigabit Ethernet Clock Generator and a member of the HiPerClocksTM HiPerClockS™ family of high performance devices from ICS. The ICS843023I uses a 25MHz crystal to synthesize 250MHz. The ICS843023I has excellent phase jitter performance, over the 1.875MHz * 20MHz integrat.

ICS843023I Features

* 1 differential 3.3V LVPECL output

* Crystal oscillator interface designed for 25MHz, 18pF parallel resonant crystal

* Output frequency range: 245MHz - 320MHz

* VCO range: 490MHz - 640MHz

* RMS phase jitter @ 250MHz, using a 25MHz crystal (1.875MHz - 20MHz):

ICS843023I_IntegratedCircuitSystems.pdf

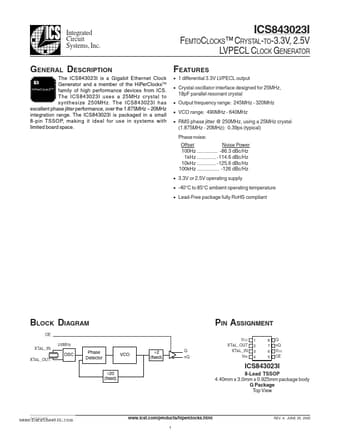

ICS843023I Datasheet Preview — Preview of ICS843023I PDF

Datasheet Details

Part number:

ICS843023I

Manufacturer:

Integrated Circuit Systems

File Size:

222.94 KB

Description:

Femtoclocks crystal-to-3.3v 2.5v lvpecl clock generator.
