ICS950223 Datasheet, Hub, Integrated Circuit Systems

ICS950223 Features

• Hub
• 3 - Pairs of differential CPU clocks (differential current mode)
• 3 - 3V66 @ 3.3V
• 10 - PCI @ 3.3V
• 1 - 48MHz @ 3.3V fixed
• 2 - REF @ 3.3V

PDF File Details

Part number:

ICS950223

Manufacturer:

Integrated Circuit Systems

File Size:

209.51kb

Download:

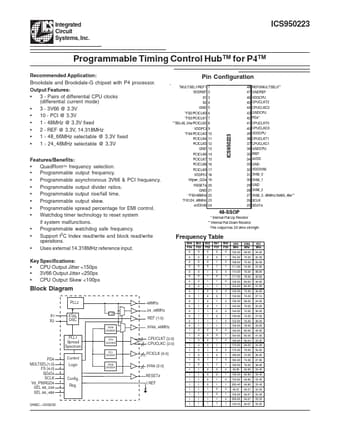

📄 Datasheet

Description:

Programmable timing control hub. The ICS950223 is a single chip clock solution for desktop designs using the Intel Brookdale chipset with PC133 or DDR memory. It prov
