ICS951411 System Clock Chip

PIN # 1 2 3 4 5 6 7 8 9 10 PIN NAME X1 X2 VDD48 USB_48MHz GND VTT_PWRGD#/PD SCLK SDATA * *FS_C * *CLKREQA# PIN TYPE IN OUT PWR OUT PWR IN IN I/O IN IN DESCRIPTION Crystal input, Nominally 14.318MHz. Crystal output, Nominally 14.318MHz Power pin for the 48MHz output.3.3V 48.00MHz USB cl.

ICS951411 Features

* 6 - Pairs of SRC/PCI-Express clocks

* 2 - Pairs of ATIG (SRC/PCI Express

* ) clocks

* 3 - Pairs of Intel P4 clocks

* 3 - 14.318 MHz REF clocks

* 1 - 48MHz USB clock

* 1 - 33 MHz PCI clock seed Key Specifications:

* CPU outputs cycle-cycle

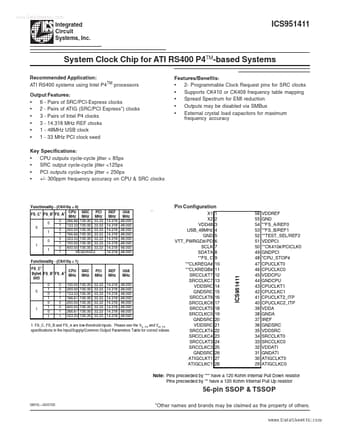

ICS951411 Datasheet (241.87 KB)

ICS951411 Datasheet Preview — Preview of ICS951411 PDF

Datasheet Details

Part number:

ICS951411

Manufacturer:

ICS

File Size:

241.87 KB

Description:

System clock chip.
