ICS951416

System Clock Chip

ICS951416 Datasheet (268.87 KB)

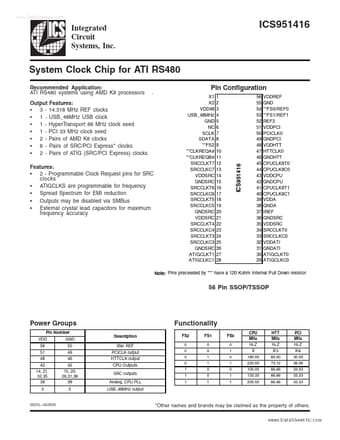

Preview of ICS951416 PDF Datasheet

Datasheet Details

Part number:

ICS951416

Manufacturer:

ICS

File Size:

268.87 KB

Description:

System clock chip

ICS951416 Features

* 3 - 14.318 MHz REF clocks

* 1 - USB_48MHz USB clock

* 1 - HyperTransport 66 MHz clock seed

* 1 - PCI 33 MHz clock seed

* 2 - Pairs of AMD K8 clocks

* 6 - Pairs of SRC/PCI Express

* clocks

* 2 - Pairs of ATIG (SRC/PCI Express) clocks Featu

ICS951416 General Description

Xtal, REF PCICLK output HTTCLK output CPU Outputs SRC outputs Analog, CPU PLL USB_48MHz output Functionality FS2 0 0 0 0 1 1 1 FS1 0 0 1 1 0 0 1 FS0 0 1 0 1 0 1 1 CPU MHz Hi-Z X 180.00 220.00 100.00 133.33 200.00 HTT MHz Hi-Z X/3 60.00 73.12 66.66 66.66 66.66 PCI MHz Hi-Z X/6 30.00 36.56 33.33 33.3.
