ICS951601

General Purpose Frequency Timing Generator

ICS951601 Features

* 17 - PCI clocks selectable, either 33.33MHz or 66.6MHz @ 3.3V

* 1 - 48MHz @ 3.3V

* 1 - REF @ 3.3V, 14.318MHz. Features:

* Programable Spread spectrum precentage for EMI control Uses external 14.318MHz crystal Select pins for frequency select Pi

ICS951601 General Description

Pin number 1 2, 13, 18, 21, 26, 33, 38, 46 3 4 9, 44 10, 30, 36, 42 5, 14, 17, 22, 27, 32, 39, 47 6 7 8, 43 24, 23, 20, 19, 16, 15, 12, 11, 29, 28, 25 35, 34, 31 41, 40, 37 45 48 Pin name REF0 VDD X1 X2 VDDA SELxx GND SDATA SCLK GNDA PCI1A (7:0) PCI1B (2:0) PCI2A (2:0) PCI2B (2:0) SPREAD 48MHz Type.

ICS951601 Datasheet (119.16 KB)

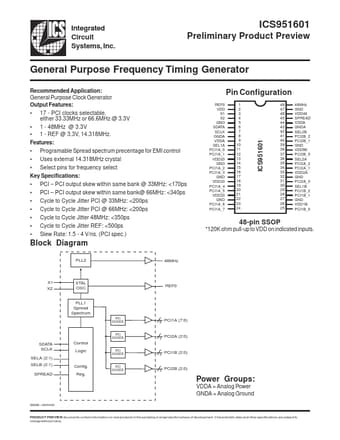

Preview of ICS951601 PDF

Datasheet Details

Part number:

ICS951601

Manufacturer:

Integrated Circuit Solution Inc

File Size:

119.16 KB

Description:

General purpose frequency timing generator.
Integrated Circuit Systems, Inc. ICS951601 Preliminary Product Preview General Purpose Frequency Timing Generator Recommended Application: General P.
