ICS951403 - AMD-K7 System Clock Chip

Product Overview

ICS

Part number	ICS951403
Manufacturer	ICS
File Size	682.62 KB
Description	AMD-K7 System Clock Chip
Datasheet	ICS951403 Datasheet

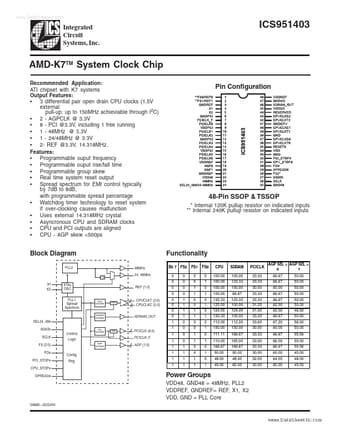

Additional preview pages of the ICS951403 datasheet.

The ICS951403 is a main clock synthesizer chip for AMD-K7 based systems with ATI chipset.

3 differential pair open drain CPU clocks (1.5V external pull-up; up to 150MHz achieviable through I2C).
2 - AGPCLK @ 3.3V.
8 - PCI @3.3V, including 1 free running.
1 - 48MHz @ 3.3V.
1 - 24/48MHz @ 3.3V.
2- REF @3.3V, 14.318MHz. Features:.
Programmable ouput frequency.
Programmable ouput rise/fall time.
Programmable group skew.
Real time system reset output.
Spread spectrum for EMI control typica.
