ICS951413

Programmable System Clock Chip

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Renesas Electronics Corporation ICS951413CGLFT IC SYSTEM CLOCK CHIP P4 56-TSSOP DigiKey 0 0
$0

ICS951413 Datasheet (355.28 KB)

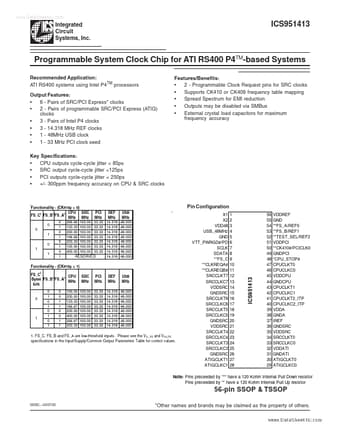

Preview of ICS951413 PDF Datasheet

Datasheet Details

Part number:

ICS951413

Manufacturer:

ICS

File Size:

355.28 KB

Description:

Programmable system clock chip

ICS951413 Features

* 6 - Pairs of SRC/PCI Express

* clocks

* 2 - Pairs of programmable SRC/PCI Express (ATIG) clocks

* 3 - Pairs of Intel P4 clocks

* 3 - 14.318 MHz REF clocks

* 1 - 48MHz USB clock

* 1 - 33 MHz PCI clock seed Key Specifications:

* CPU outputs

ICS951413 General Description

PIN # 1 2 3 4 5 6 7 8 9 PIN NAME X1 X2 VDD48 USB_48MHz GND VTT_PWRGD#/PD SCLK SDATA
*
*FS_C PIN TYPE IN OUT PWR OUT PWR IN IN I/O IN DESCRIPTION Crystal input, Nominally 14.318MHz. Crystal output, Nominally 14.318MHz Power pin for the 48MHz output.3.3V 48.00MHz USB clock Ground pin. Vtt_PwrGd.
