ICS951412 - System Clock Chip

Product Overview

ICS

ICS951412 System Clock Chip by ICS - Datasheet Preview — Datasheet preview – ICS951412

Datasheet Details

Part number	ICS951412
Manufacturer	ICS
File Size	326.24 KB
Description	System Clock Chip
Datasheet	ICS951412 Datasheet

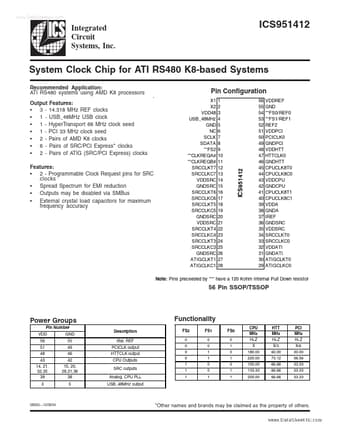

Additional preview pages of the ICS951412 datasheet.

Product details

Description

Xtal, REF PCICLK output HTTCLK output CPU Outputs SRC outputs Analog, CPU PLL USB_48MHz output Functionality FS2 0 0 0 0 1 1 1 FS1 0 0 1 1 0 0 1 FS0 0 1 0 1 0 1 1 CPU MHz Hi-Z X 180.00 220.00 100.00 133.33 200.00 HTT MHz Hi-Z X/3 60.00 73.12 66.66 66.66 66.66 PCI MHz Hi-Z X/6 30.00 36.56 33.33 33.33 33.33 0883G 12/08/04 Other names and brands may be claimed as the property of others.

Features

3 - 14.318 MHz REF clocks.
1 - USB_48MHz USB clock.
1 - HyperTransport 66 MHz clock seed.
1 - PCI 33 MHz clock seed.
2 - Pairs of AMD K8 clocks.
6 - Pairs of SRC/PCI Express.
clocks.
2 - Pairs of ATIG (SRC/PCI Express) clocks Features:.
2 - Programmable Clock Request pins for SRC clocks.
Spread Spectrum for EMI reduction.
Outputs may be disabled via SMBus.
External crystal load capacitors for.
