ICS951462

Programmable System Clock Chip

ICS951462 Features

* 2 - pairs of CPU pairs

* 8 - pairs of SRC pairs

* 4 - pairs of ATIG pairs

* 1 - HyperTransport 66MHz clock seed

* 2 - 48MHz USB clock

* 3 - 14.318MHz Reference clock Key Specifications:

* CPU outputs cycle-to-cycle jitter < 85ps

* S

ICS951462 General Description

USB_48 outputs SRCCLK outputs ATIGCLK differential outputs Analog, PLL CPUCLK8 differential outputs HTTCLK output REF outputs
*Other names and brands may be claimed as the property of others. Integrated Circuit Systems, Inc. Pin Description PIN # 1 GNDREF 2 VDDREF 3 X1 4 X2 5 VDD48 6 48MHz_0.

ICS951462 Datasheet (237.84 KB)

Preview of ICS951462 PDF

Datasheet Details

Part number:

ICS951462

Manufacturer:

ICS

File Size:

237.84 KB

Description:

Programmable system clock chip.

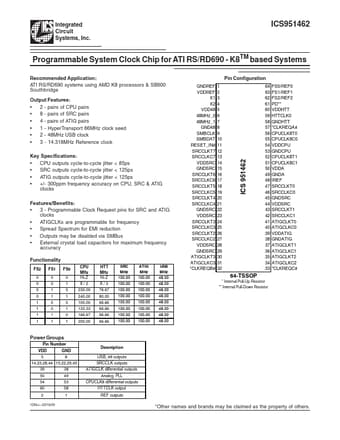

Integrated Circuit Systems, Inc. ICS951462 Programmable System Clock Chip for ATI RS/RD690 - K8TM based Systems Recommended Application: ATI RS/RD6.
