MK1410

NTSC/PAL Clock Source

MK1410 Features

* Packaged in 8 pin SOIC

* Ideal for devices such as AD722/AD725 from Analog Devices and Brooktree BT819

* Input crystal or clock frequency of 14.31818 MHz

* Power down turns off chip

* Frequencies are within 5 ppm with properly tuned reference crystal or accu

MK1410 General Description

The MK1410 and MK1411 are the ideal way to generate clocks for NTSC/PAL video encoders and decoders. Stored in the devices are two or four popular frequencies for NTSC and PAL. In an 8 pin SOIC, the chips can save component count, board space, and cost over surface mount crystals and oscillators, an.

MK1410 Datasheet (63.41 KB)

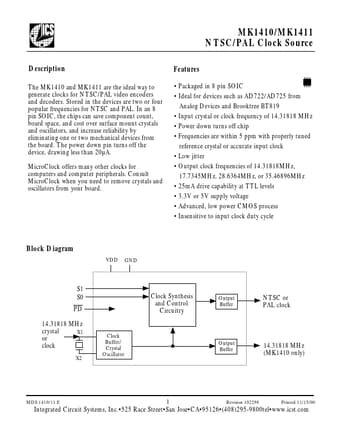

Preview of MK1410 PDF

Datasheet Details

Part number:

MK1410

Manufacturer:

Integrated Circuit Systems

File Size:

63.41 KB

Description:

Ntsc/pal clock source.
