MK1413

MPEG Audio Clock Synthesizer

MK1413 Features

* Packaged in 8 pin SOIC

* Input crystal or clock frequency of 14.31818 MHz

* Provides master MPEG clocks for 32 kHz, 44.1 kHz and 48 kHz sampling rates

* Output clock frequencies of 8.192 MHz, 11.2896 MHz, 12.288 MHz, and 16.9344 MHz

* Low jitter

* 25

MK1413 General Description

The MK1413 is the ideal way to generate clocks for MPEG audio devices in computers. The device uses MicroClock’s proprietary mixture of analog and digital Phase-Locked Loop (PLL) technology to synthesize one of four frequencies from the 14.31818 MHz reference. In an 8 pin SOIC, the MK1413 can save c.

MK1413 Datasheet (61.61 KB)

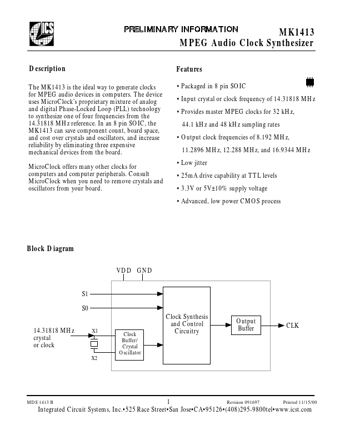

Preview of MK1413 PDF

Datasheet Details

Part number:

MK1413

Manufacturer:

Integrated Circuit Systems

File Size:

61.61 KB

Description:

Mpeg audio clock synthesizer.
