IDT72V3660 - CMOS FIFO memories

Integrated Device Tech

📥 Download Datasheet

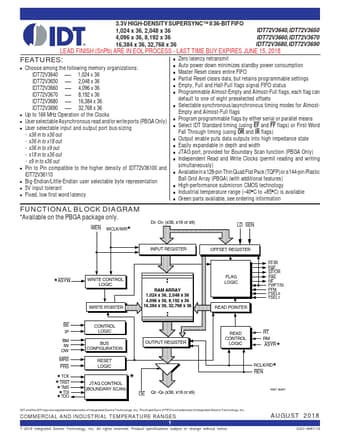

IDT72V3660 Datasheet Preview — Preview of IDT72V3660 PDF

Datasheet Details

Part number: IDT72V3660
Manufacturer: Integrated Device Tech
File Size: 290.68 KB
Datasheet: IDT72V3660_IntegratedDeviceTechnology.pdf
Description: CMOS FIFO memories

IDT72V3660 Product details

Description

The IDT72V3640/72V3650/72V3660/72V3670/72V3680/72V3690/ 72V36100/72V36110 are exceptionally deep, high speed, CMOS First-InFirst-Out (FIFO) memories with clocked read and write controls and a flexible Bus-Matching x36/x18/x9 data flow. Flexible x36/x18/x9 Bus-Matching on both read and write ports The period required by the retransmit operation is fixed and short. The first word data latency period, from the time the firs

Features

:.
Choose among the following memory organizations:Commercial IDT72V3640  1,024 x 36 IDT72V3650  2,048 x 36 IDT72V3660  4,096 x 36 IDT72V3670  8,192 x 36 IDT72V3680  16,384 x 36 IDT72V3690  32,768 x 36 IDT72V36100  65,536 x 36 IDT72V36110  131,072 x 36 133 MHz operation (7.5 ns read/write cycle time) User selectable input and output port bus-sizing - x36 in to x36 out - x36 in to x18 out - x36 in to x9 out - x18 in to x36 out.
