IDT74FCT2573CT FAST CMOS OCTAL TRANSPARENT LATCHES

The FCT373T/FCT2373T, FCT533T and FCT573T/ FCT2573T are octal transparent latches built using an advanced dual metal CMOS technology. These octal latches have 3-state outputs and are intended for bus oriented applications. The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH.

IDT74FCT2573CT Features

* Reduced system switching noise

* Common features:

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* Meets or exceeds JEDEC standard 18

IDT74FCT2373CT-IntegratedDeviceTech.pdf

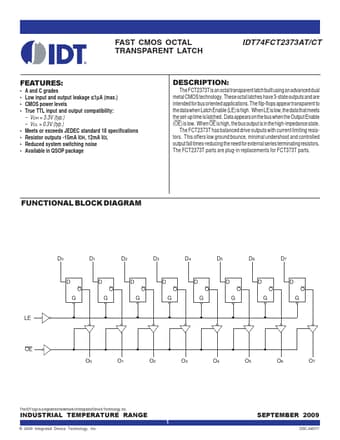

IDT74FCT2573CT Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT74FCT2573CT, IDT74FCT2373CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT74FCT2573CT, IDT74FCT2373CT

Manufacturer:

Integrated Device Tech

File Size:

75.60 KB

Description:

Fast cmos octal transparent latches.

Note:

This datasheet PDF includes multiple part numbers: IDT74FCT2573CT, IDT74FCT2373CT.
Please refer to the document for exact specifications by model.
