IDT74FCT257AT FAST CMOS QUAD 2-INPUT MULTIPLEXER

The FCT157T, FCT257T/FCT2257T are high-speed quad 2-input multiplexers built using an advanced dual metal CMOS technology. Four bits of data from two sources can be selected using the common select input. The four buffered outputs present the selected data in the true (non-inverting) form. The FCT1.

IDT74FCT257AT Features

* Common features:

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* Meets or exceeds JEDEC standard 18 specifications

* Product available

IDT74FCT257AT_IntegratedDeviceTechnology.pdf

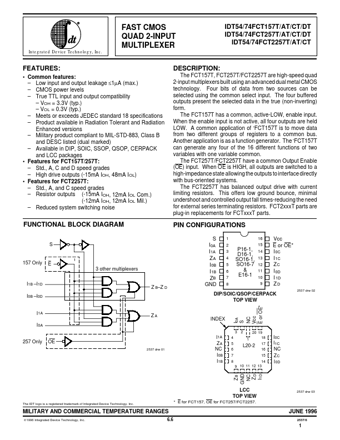

IDT74FCT257AT Datasheet Preview — Preview of IDT74FCT257AT PDF

Datasheet Details

Part number:

IDT74FCT257AT

Manufacturer:

Integrated Device Tech

File Size:

135.56 KB

Description:

Fast cmos quad 2-input multiplexer.
