IDT74FCT2827AT FAST CMOS 10-BIT BUFFERS

The FCT827T is built using an advanced dual metal CMOS technology. The FCT827T/FCT2827T 10-bit bus drivers provide highperformance bus interface buffering for wide data/address paths or buses carrying parity. The 10-bit buffers have NANDed output enables for maximum control flexibility. All of the .

IDT74FCT2827AT Features

* Common features:

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* Meets or exceeds JEDEC standard 18 specifications

* Product available

IDT74FCT2827AT Datasheet (127.57 KB)

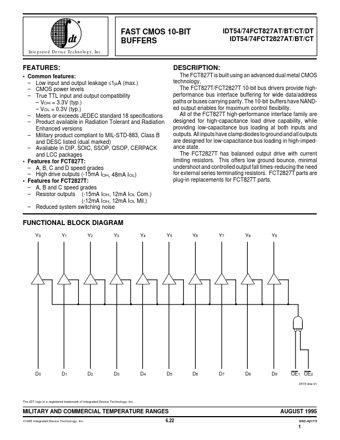

IDT74FCT2827AT Datasheet Preview — Preview of IDT74FCT2827AT PDF

Datasheet Details

Part number:

IDT74FCT2827AT

Manufacturer:

Integrated Device Tech

File Size:

127.57 KB

Description:

Fast cmos 10-bit buffers.
