ICS83210

1-TO-10 HSTL FANOUT BUFFER

ICS83210 Features

* Ten single-ended HSTL outputs

* One single-ended HSTL clock input

* Maximum input frequency: 150MHz

* Output skew: 110ps (maximum)

* Part-to-part skew: 2ns (maximum)

* 1.5V power supply

* 0°C to 85°C ambient operating temperature

* Av

ICS83210 General Description

The ICS83210 is a low skew, 1-to-10 HSTL Fanout IC S Buffer and a member of the HiPerClockS™ Family HiPerClockS™ of High Performance Clock Solutions from IDT. The class II HSTL outputs are balanced push-pull in design, capable of delivering 16mA into a 10pF load. This class allows both source series.

ICS83210 Datasheet (204.70 KB)

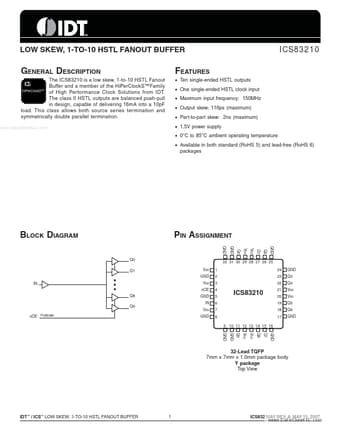

Preview of ICS83210 PDF

Datasheet Details

Part number:

ICS83210

Manufacturer:

Integrated Device Technology

File Size:

204.70 KB

Description:

1-to-10 hstl fanout buffer.
