IDT54FCT163652 3.3V CMOS 16-BIT BUS TRANSCEIVER/ REGISTERS

The IDT54/74FCT163652/A/C 16-bit registered transceivers are built using advanced dual metal CMOS technology. These high-speed, low-power devices are organized as two independent 8-bit bus transceivers with 3-state D-type registers. For example, the xOEAB and xOEBA signals control the transceiver .

IDT54FCT163652 Features

* 0.5 MICRON CMOS Technology

* Typical tSK(o) (Output Skew) < 250ps

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)

* Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack

IDT54FCT163652 Datasheet (166.61 KB)

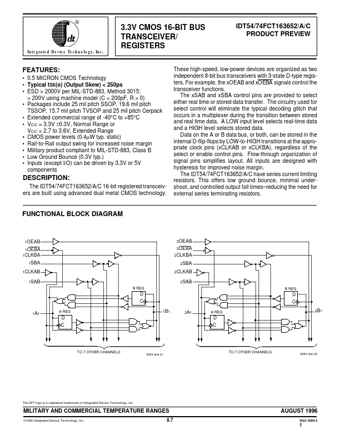

IDT54FCT163652 Datasheet Preview — Preview of IDT54FCT163652 PDF

Datasheet Details

Part number:

IDT54FCT163652

Manufacturer:

Integrated Device Technology

File Size:

166.61 KB

Description:

3.3v cmos 16-bit bus transceiver/ registers.
