IDT54FCT16823AT, FAST CMOS 18-BIT REGISTER

FAST CMOS 18-BIT REGISTER Integrated Device Technology, Inc.IDT54/74FCT16823AT/BT/CT/ET IDT54/74FCT162823AT/BT/CT/ET .
The FCT16823AT/BT/CT/ET and FCT162823AT/BT/CT/ ET 18-bit bus interface registers are built using advanced, dual metal CMOS technology.

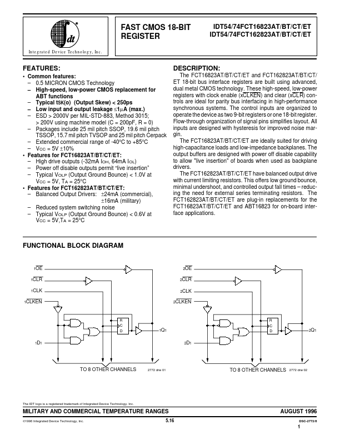

datasheet Preview Page 1 from Datasheet4u.com

IDT54FCT16823AT_IntegratedDeviceTechnology.pdf

IDT54FCT16823AT Datasheet Preview — Preview of IDT54FCT16823AT PDF

Datasheet Details

Part number:

IDT54FCT16823AT

Manufacturer:

Integrated Device Technology

File Size:

157.37 KB

Description:

FAST CMOS 18-BIT REGISTER

Features

* Common features:
* 0.5 MICRON CMOS Technology
* High-speed, low-power CMOS replacement for ABT functions
* Typical tSK(o) (Output Skew) < 250ps
* Low input and output leakage ≤1µ A (max. )
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using mach

Applications

* FUNCTIONAL BLOCK DIAGRAM 1OE 1CLR 1CLK 1CLKEN 2OE 2CLR 2CLK 2CLKEN R C D 1D1 1Q1 2D1 R C D 2Q1 TO 8 OTHER CHANNELS 2772 drw 01 TO 8 OTHER CHANNELS 2772 drw 02 The IDT logo is a registered trademark of Integrated Device Technology, Inc. MILITARY AND COMMERCIAL TEMPERATURE RANGES ©1996 I
