IDT54FCT16827AT Datasheet - Integrated Device Technology

IDT54FCT16827AT, FAST CMOS 20-BIT BUFFERS

FAST CMOS 20-BIT BUFFERS Integrated Device Technology, Inc.IDT54/74FCT16827AT/BT/CT/ET IDT54/74FCT162827AT/BT/CT/ET .
The FCT16827AT/BT/CT/ET and FCT162827AT/BT/CT/ ET 20-bit buffers are built using advanced dual metal CMOS technology.

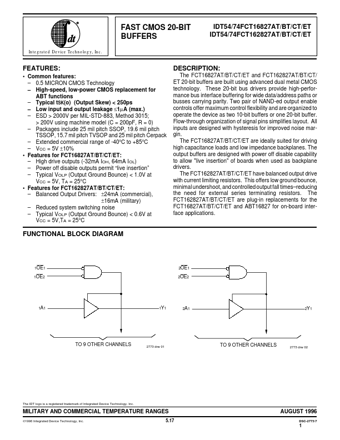

datasheet Preview Page 1 from Datasheet4u.com

IDT54FCT16827AT_IntegratedDeviceTechnology.pdf

IDT54FCT16827AT Datasheet Preview — Preview of IDT54FCT16827AT PDF

Datasheet Details

Part number:

IDT54FCT16827AT

Manufacturer:

Integrated Device Technology

File Size:

120.08 KB

Description:

FAST CMOS 20-BIT BUFFERS

Features

* Common features:
* 0.5 MICRON CMOS Technology
* High-speed, low-power CMOS replacement for ABT functions
* Typical tSK(o) (Output Skew) < 250ps
* Low input and output leakage ≤1µ A (max. )
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using mach

Applications

* FUNCTIONAL BLOCK DIAGRAM 1OE1 1OE2 2OE 1 2OE2 1A1 1Y1 2A1 2Y1 TO 9 OTHER CHANNELS 2773 drw 01 TO 9 OTHER CHANNELS 2773 drw 02 The IDT logo is a registered trademark of Integrated Device Technology, Inc. MILITARY AND COMMERCIAL TEMPERATURE RANGES ©1996 Integrated Device Technology, Inc.
