IDT54FCT273AT, FAST CMOS OCTAL D FLIP-FLOP WITH MASTER RESET

IDT54/74FCT273T/AT/CT FAST CMOS OCTAL D FLIP-FLOP WITH MASTER RESET MILITARYANDINDUSTRIALTEMPERATURERANGES FAST CMOS OCTAL D FLIP-FLOP WITH MASTER R.
The FCT273T is an octal D flip-flop built using an advanced dual metal CMOS technology.

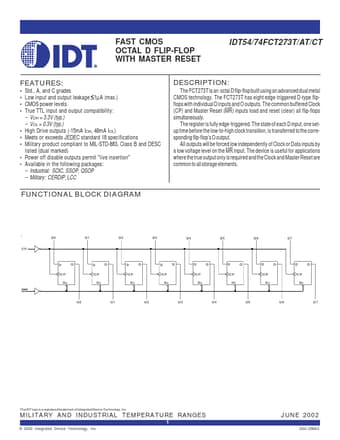

datasheet Preview Page 1 from Datasheet4u.com

IDT54FCT273AT_IntegratedDeviceTechnology.pdf

IDT54FCT273AT Datasheet Preview — Preview of IDT54FCT273AT PDF

Datasheet Details

Part number:

IDT54FCT273AT

Manufacturer:

Integrated Device Technology

File Size:

71.70 KB

Description:

FAST CMOS OCTAL D FLIP-FLOP WITH MASTER RESET

Features

* Std. , A, and C grades
* Low input and output leakage ≤1µA (max. )
* CMOS power levels
* True TTL input and output compatibility:
* VOH = 3.3V (typ. )
* VOL = 0.3V (typ. )
* High Drive outputs (-15mA IOH, 48mA IOL)
* Meets or exceeds JED

Applications

* where the true output only is required and the Clock and Master Reset are common to all storage elements. FUNCTIONAL BLOCK DIAGRAM D0 D1 D2 D3 D4 D5 D6 D7 CP DQ DQ DQ DQ DQ DQ DQ DQ CP CP CP CP CP CP CP CP RD RD RD RD RD RD RD RD MR O0 O1 O2 O3 O4 O5 O6 O7 The IDT logo is a registered t
