IDT54FCT244T Datasheet - Renesas

IDT54FCT244T FAST CMOS OCTAL BUFFER/LINE DRIVER

The IDT octal buffer/line driver is built using an advanced dual metal CMOS technology. The FCT244T is designed to be employed as a memory and address driver, clock driver, and bus-oriented transmitter/ receiver which provides improved board density. FUNCTIONAL BLOCK DIAGRAM OEA DA0 OB0 DA1 OB1 D.

IDT54FCT244T Features

* Std., A, and C grades

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility:

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* High Drive outputs (-15mA IOH, 64mA IOL)

* Meets or exceeds JED

IDT54FCT244T-Renesas.pdf

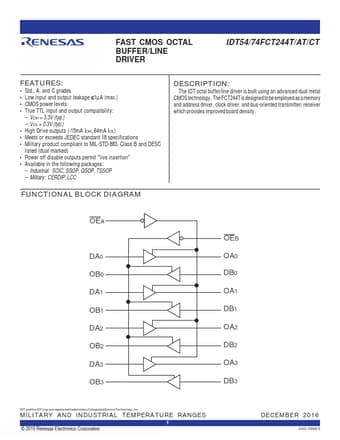

Preview of IDT54FCT244T PDF
IDT54FCT244T Datasheet Preview Page 2 IDT54FCT244T Datasheet Preview Page 3

Datasheet Details

Part number:

IDT54FCT244T

Manufacturer:

Renesas ↗

File Size:

214.85 KB

Description:

Fast cmos octal buffer/line driver.
