IDT54FCT533, FAST CMOS OCTAL TRANSPARENT LATCHES

® FAST CMOS OCTAL TRANSPARENT LATCHES Integrated Device Technology, Inc.IDT54/74FCT373/A/C IDT54/74FCT533/A/C IDT54/74FCT573/A/C .
The IDT54/74FCT373/A/C, IDT54/74FCT533/A/C and IDT54/74FCT573/A/C are octal transparent latches built using an advanced dual metal CMOS technology.

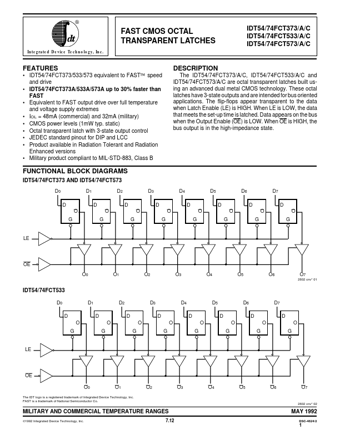

datasheet Preview Page 1 from Datasheet4u.com

IDT54FCT533_IntegratedDeviceTechnology.pdf

IDT54FCT533 Datasheet Preview — Preview of IDT54FCT533 PDF

Datasheet Details

Part number:

IDT54FCT533

Manufacturer:

Integrated Device Technology

File Size:

160.70 KB

Description:

FAST CMOS OCTAL TRANSPARENT LATCHES

Features

* IDT54/74FCT373/533/573 equivalent to FAST™ speed and drive
* IDT54/74FCT373A/533A/573A up to 30% faster than FAST
* Equivalent to FAST output drive over full temperature and voltage supply extremes
* IOL = 48mA (commercial) and 32mA (military)
* CMOS power l

Applications

* The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the set-up time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the bus output is in the high-impedance state. FUNCTIONAL BLOCK DIAGRAMS IDT54/
