IDT54FCT533T, FAST CMOS OCTAL TRANSPARENT LATCHES

Integrated Device Technology, Inc.FAST CMOS OCTAL TRANSPARENT LATCHES IDT54/74FCT373T/AT/CT/DT - 2373T/AT/CT IDT54/74FCT533T/AT/CT IDT54/74FCT573T/.
The FCT373T/FCT2373T, FCT533T and FCT573T/ FCT2573T are octal transparent latches built using an advanced dual metal CMOS technology.

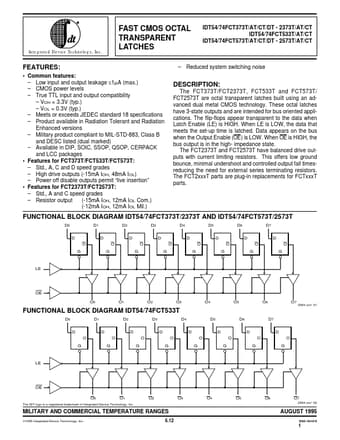

datasheet Preview Page 1 from Datasheet4u.com

IDT54FCT533T_IntegratedDeviceTechnology.pdf

IDT54FCT533T Datasheet Preview — Preview of IDT54FCT533T PDF

Datasheet Details

Part number:

IDT54FCT533T

Manufacturer:

Integrated Device Technology

File Size:

182.41 KB

Description:

FAST CMOS OCTAL TRANSPARENT LATCHES

Features

* Common features:
* Low input and output leakage ≤1µA (max. )
* CMOS power levels
* True TTL input and output compatibility
* VOH = 3.3V (typ. )
* VOL = 0.3V (typ. )
* Meets or exceeds JEDEC standard 18 specifications
* Product available

Applications

* The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the set-up time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the bus output is in the high- impedance state. The FCT2373T and FCT2573T have b
