IDT54FCT533A

FAST CMOS OCTAL TRANSPARENT LATCHES

IDT54FCT533A Features

* IDT54/74FCT373/533/573 equivalent to FAST™ speed and drive

* IDT54/74FCT373A/533A/573A up to 30% faster than FAST

* Equivalent to FAST output drive over full temperature and voltage supply extremes

* IOL = 48mA (commercial) and 32mA (military)

* CMOS power l

IDT54FCT533A General Description

The IDT54/74FCT373/A/C, IDT54/74FCT533/A/C and IDT54/74FCT573/A/C are octal transparent latches built using an advanced dual metal CMOS technology. These octal latches have 3-state outputs and are intended for bus oriented applications. The flip-flops appear transparent to the data when Latch Enable.

IDT54FCT533A Datasheet (160.70 KB)

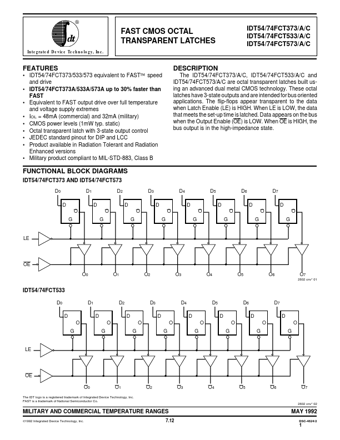

Preview of IDT54FCT533A PDF

Datasheet Details

Part number:

IDT54FCT533A

Manufacturer:

Integrated Device Technology

File Size:

160.70 KB

Description:

Fast cmos octal transparent latches.
