IDT54FCT534C - FAST CMOS OCTAL D REGISTERS (3-STATE)

Integrated Device Technology

📥 Download Datasheet

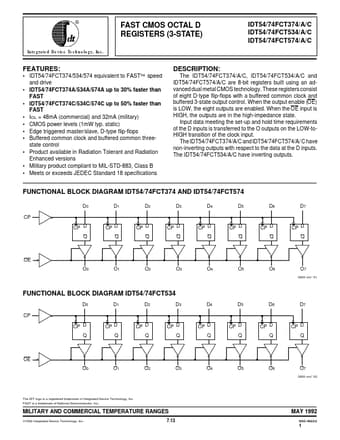

IDT54FCT534C Datasheet Preview — Preview of IDT54FCT534C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IDT54FCT534C
Manufacturer: Integrated Device Technology
File Size: 145.24 KB
Datasheet: IDT54FCT534C_IntegratedDeviceTechnology.pdf
Description: FAST CMOS OCTAL D REGISTERS (3-STATE)

IDT54FCT534C Product details

Description

The IDT54/74FCT374/A/C, IDT54/74FCT534/A/C and IDT54/74FCT574/A/C are 8-bit registers built using an advanced dual metal CMOS technology.

Features

IDT54/74FCT374/534/574 equivalent to FAST™ speed and drive.
IDT54/74FCT374A/534A/574A up to 30% faster than FAST.
IDT54/74FCT374C/534C/574C up to 50% faster than FAST.
IOL = 48mA (commercial) and 32mA (military).
CMOS power levels (1mW typ. static).
Edge triggered master/slave, D-type flip-flops.
Buffered common clock and buffered common threestate control.
Product available in Radiation Tolerant and Radiation Enhanced ver.
