IDT54FCT534CT Datasheet - Integrated Device Technology

IDT54FCT534CT FAST CMOS OCTAL D REGISTERS (3-STATE)

The FCT374T/FCT2374T, FCT534T and FCT574T/ FCT2574T are 8-bit registers built using an advanced dual metal CMOS technology. These registers consist of eight Dtype flip-flops with a buffered common clock and buffered 3state output control. When the output enable (OE) input is LOW, the eight outputs a.

IDT54FCT534CT Features

* Common features:

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* Meets or exceeds JEDEC standard 18 specifications

* Product available

IDT54FCT534CT Datasheet (168.90 KB)

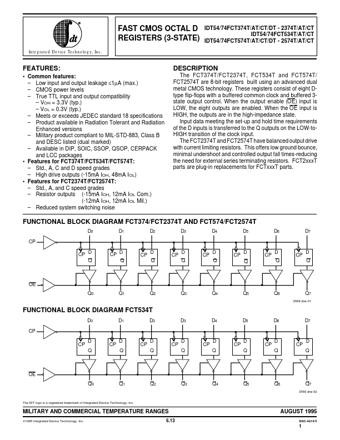

IDT54FCT534CT Datasheet Preview — Preview of IDT54FCT534CT PDF

Datasheet Details

Part number:

IDT54FCT534CT

Manufacturer:

Integrated Device Technology

File Size:

168.90 KB

Description:

Fast cmos octal d registers (3-state).
