IDT5P49EE502 Datasheet - Integrated Device Technology

LOW POWER CLOCK GENERATOR

IDT5P49EE502 Features

* Four internal PLLs

* Internal non-volatile EEPROM

* Internal I2C EEPROM master interface

* FAST (400kHz) mode I2C serial interfaces

* Input Frequencies

* TCXO: 10 MHz to 40 MHz

* Crystal: 8 MHz to 30 MHz

* Output Frequency Ranges: kH

IDT5P49EE502 General Description

The IDT5P49EE502 is a programmable clock generator intended for low power, battery operated consumer applications. There are four internal PLLs, each individually programmable, allowing for up to five differrent output frequencies. The frequencies are generated from a single reference clock. The ref.

IDT5P49EE502 Datasheet (229.20 KB)

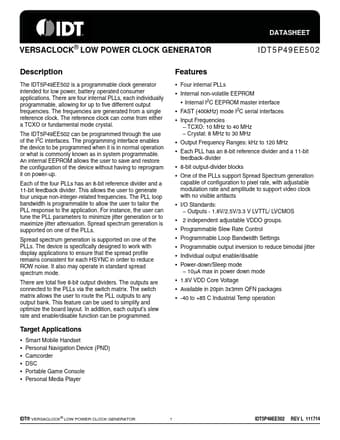

Preview of IDT5P49EE502 PDF

Datasheet Details

Part number:

IDT5P49EE502

Manufacturer:

Integrated Device Technology

File Size:

229.20 KB

Description:

Low power clock generator.
