IDT5P49EE801 - LOW POWER CLOCK GENERATOR

IDT5P49EE801 Description

PRELIMINARY DATASHEET VERSACLOCK® LOW POWER CLOCK GENERATOR .
The IDT5P49EE801 is a programmable clock generator intended for low power, battery operated consumer applications.

IDT5P49EE801 Features

* Four internal PLLs
* Internal non-volatile EEPROM
* Internal I2C EEPROM master interface
* FAST (400kHz) mode I2C serial interfaces
* Input Frequencies
* TCXO: 10 MHz to 40 MHz
* Crystal: 8 MHz to 30 MHz
* RTC Crystal: 32.768 kHz

IDT5P49EE801 Applications

* There are four internal PLLs, each individually programmable, allowing for up to eight differrent output frequencies. The frequencies are generated from a single reference clock. The reference clock can come from either a TCXO or fundamental mode crystal. An additional 32kHz crystal oscillator is a

📥 Download Datasheet

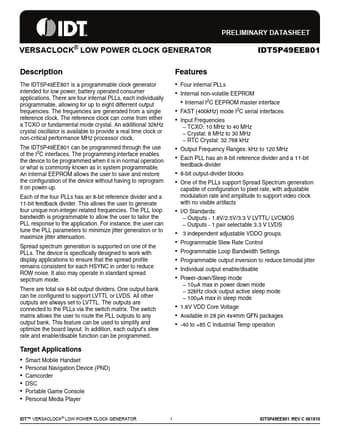

Preview of IDT5P49EE801 PDF
datasheet Preview Page 2 datasheet Preview Page 3
