IDT6116LA, IDT6116LA35 - CMOS Static RAM

Integrated Device Technology

📥 Download Datasheet

IDT6116LA Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT6116LA, IDT6116LA35. Please refer to the document for exact specifications by model.

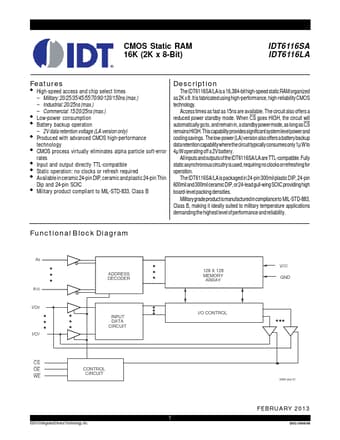

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT6116LA, IDT6116LA35
Manufacturer	Integrated Device Technology
File Size	88.78 KB
Description	CMOS Static RAM
Datasheet	IDT6116LA35_IntegratedDeviceTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: IDT6116LA, IDT6116LA35. Please refer to the document for exact specifications by model.

IDT6116LA Product details

Description

The IDT6116SA/LA is a 16,384-bit high-speed static RAM organized as 2K x 8.

Features

High-speed access and chip select times.
Military: 20/25/35/45/55/70/90/120/150ns (max. ).
Industrial: 20/25ns (max. ).
Commercial: 15/20/25ns (max. ).
Low-power consumption.
Battery backup operation.
2V data retention voltage (LA version only).
Produced with advanced CMOS high-performance technology.
CMOS process virtually eliminates alpha particle soft-error rates.
Input and output directly TTL-compatible.
Static operation: n.
