IDT6168LA

CMOS STATIC RAM 16K (4K x 4-BIT)

IDT6168LA Features

* High-speed (equal access and cycle time)

* Military: 15/20/25/35/45ns (max.)

* Commercial: 15/20/25/35ns (max.)

* Low power consumption

* Battery backup operation

* 2V data retention voltage (IDT6168LA only)

* Available in high-density 20-pin

IDT6168LA General Description

The IDT6168 is a 16,384-bit high-speed static RAM organized as 4K x 4. It is fabricated using lDT’s high-performance, high-reliability CMOS technology. This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost-effective approach for high-speed memory app.

IDT6168LA Datasheet (69.68 KB)

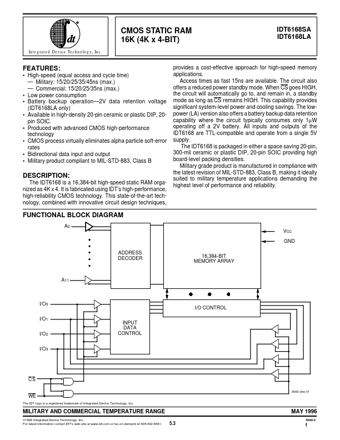

Preview of IDT6168LA PDF

Datasheet Details

Part number:

IDT6168LA

Manufacturer:

Integrated Device Technology

File Size:

69.68 KB

Description:

Cmos static ram 16k (4k x 4-bit).
