IDT7052S, IDT7052L, HIGH-SPEED 2K x 8 FourPort STATIC RAM

www.DataSheet4U.com HIGH-SPEED 2K x 8 FourPortTM STATIC RAM .
The IDT7052 is a high-speed 2K x 8 FourPort™ Static RAM designed to be used in systems where multiple access into a common RAM is required.

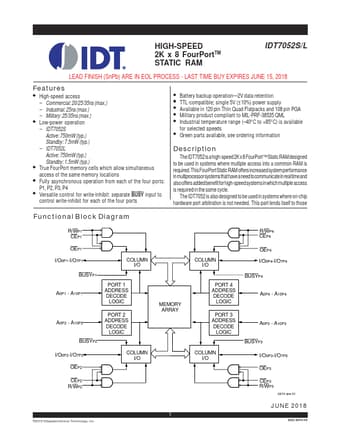

datasheet Preview Page 1 from Datasheet4u.com

IDT7052L_IntegratedDeviceTechnology.pdf

IDT7052S Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT7052S, IDT7052L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT7052S, IDT7052L

Manufacturer:

Integrated Device Technology

File Size:

192.93 KB

Description:

HIGH-SPEED 2K x 8 FourPort STATIC RAM

Note:

This datasheet PDF includes multiple part numbers: IDT7052S, IDT7052L.
Please refer to the document for exact specifications by model.

Features

* x IDT7052S/L x x x x x High-speed access
* Military: 25/35ns (max. )
* Commercial: 20/25/35ns (max. ) Low-power operation
* IDT7052S Active: 750mW (typ. ) Standby: 7.5mW (typ. )
* IDT7052L Active: 750mW (typ. ) Standby: 1.5mW (typ. ) True FourPort memory cells which

Applications

* demanding the highest level of performance and reliability. Pin Configurations(1,2,3) 81 80 77 74 72 69 68 65 63 60 57 54 R/W P2 84 83 NC 78 A7 P2 76 A5 P2 73 A3 P2 70 A0 P2 67 A0 P3 64 A3 P3 61 A5 P3 59 A7 P3 A8 P3 55 NC 56 R/W P3 53 12 BUSY P2 87 86 OE P2 82 A8 P2 79 A10 P2 75 A
