IDT7187L, IDT, CMOS STATIC RAM 64K (64K x 1-BIT)

CMOS STATIC RAM 64K (64K x 1-BIT) Integrated Device Technology, Inc.IDT7187S IDT7187L .
The IDT7187 is a 65,536-bit high-speed static RAM organized as 64K x 1.

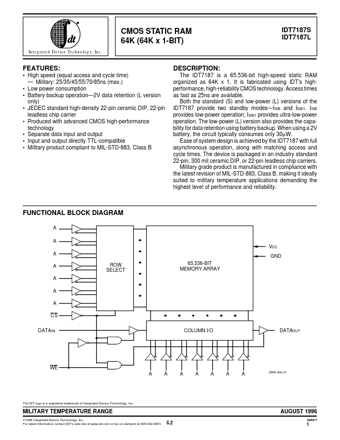

datasheet Preview Page 1 from Datasheet4u.com

IDT-7187.pdf

IDT7187L Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT7187L, IDT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT7187L, IDT

Manufacturer:

Integrated Device Technology

File Size:

70.65 KB

Description:

CMOS STATIC RAM 64K (64K x 1-BIT)

Note:

This datasheet PDF includes multiple part numbers: IDT7187L, IDT.
Please refer to the document for exact specifications by model.

Features

* High speed (equal access and cycle time)
* Military: 25/35/45/55/70/85ns (max. )
* Low power consumption
* Battery backup operation
* 2V data retention (L version only)
* JEDEC standard high-density 22-pin ceramic DIP, 22-pin leadless chip carrier

Applications

* demanding the highest level of performance and reliability. FUNCTIONAL BLOCK DIAGRAM A A VCC A A A A A ROW SELECT 65,536-BIT MEMORY ARRAY GND CS DATA IN COLUMN I/O DATAOUT WE A A A A A A A 2986 drw 01 The IDT logo is a registered trademark of Integrated Device Technology, Inc. MILITARY TEMPERA
