Datasheet Details
- Part number
- IDT71T016
- Manufacturer
- Integrated Device Technology
- File Size
- 80.71 KB
- Datasheet
- IDT71T016_IntegratedDeviceTechnology.pdf
- Description
- LOW POWER 2V CMOS SRAM 1 MEG (64K x 16-BIT)
IDT71T016 Description

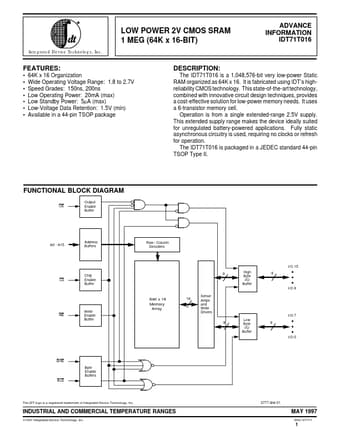

LOW POWER 2V CMOS SRAM 1 MEG (64K x 16-BIT) Integrated Device Technology, Inc.ADVANCE INFORMATION IDT71T016 .
The IDT71T016 is a 1,048,576-bit very low-power Static RAM organized as 64K x 16.
IDT71T016 Features
* 64K x 16 Organization Wide Operating Voltage Range: 1.8 to 2.7V Speed Grades: 150ns, 200ns Low Operating Power: 20mA (max) Low Standby Power: 5µA (max) Low-Voltage Data Retention: 1.5V (min) Available in a 44-pin TSOP package
DE
IDT71T016 Applications
* Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation. The IDT71T016 is packaged in a JEDEC standard 44-pin TSOP Type II. FUNCTIONAL BLOCK DIAGRAM
OE
Output Enable Buffer
A0 - A15
Address Buffers
Row / Column Decoders
I/O 15 Chip Enable Buffer 8 High Byte I
