IDT71T75602, Synchronous SRAM

512K x 36, 1M x 18 2.5V Synchronous ZBT™ SRAMs 2.5V I/O, Burst Counter Pipelined Outputs IDT71T75602 IDT71T75802 .
The IDT71T75602/802 are 2.

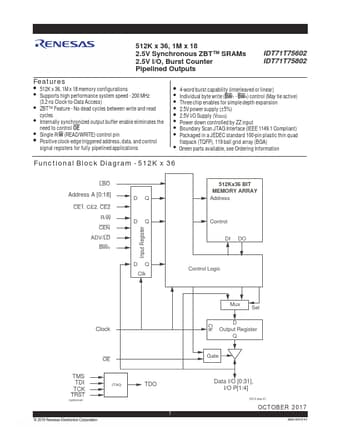

datasheet Preview Page 1 from Datasheet4u.com

IDT71T75602-Renesas.pdf

IDT71T75602 Datasheet Preview — Preview of IDT71T75602 PDF

Datasheet Details

Part number:

IDT71T75602

Manufacturer:

Renesas ↗

File Size:

355.39 KB

Description:

Synchronous SRAM

Features

* 512K x 36, 1M x 18 memory configurations
* Supports high performance system speed - 200 MHz (3.2 ns Clock-to-Data Access)
* ZBTTM Feature - No dead cycles between write and read cycles
* Internally synchronized output buffer enable eliminates the need to control OE
* Single R/W

Applications

* 4-word burst capability (interleaved or linear)
* Individual byte write (BW1 - BW4) control (May tie active)
* Three chip enables for simple depth expansion
* 2.5V power supply (±5%)
* 2.5V I/O Supply (VDDQ)
* Power down controlled by ZZ input
* Boundary Scan JTAG Inte
