Datasheet Details
- Part number
- IDT71256S
- Manufacturer
- Renesas ↗
- File Size
- 321.09 KB
- Datasheet
- IDT71256S-Renesas.pdf
- Description
- CMOS Static RAM

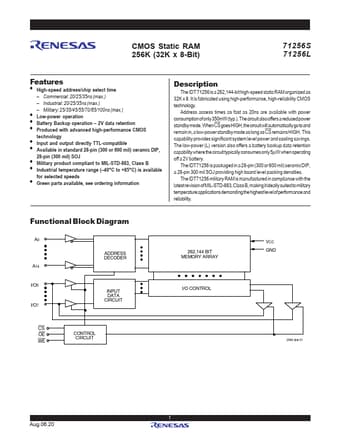

IDT71256S Description
CMOS Static RAM 256K (32K x 8-Bit) 71256S 71256L .
The IDT 71256 is a 262,144-bit high-speed static RAM organized as 32K x 8.
IDT71256S Features
* High-speed address/chip select time
* Commercial: 20/25/35ns (max. )
* Industrial: 20/25/35ns (max. )
* Military: 25/35/45/55/70/85/100ns (max. )
* Low-power operation
* Battery Backup operation
* 2V data retention
* Produced with advanced high-performa
IDT71256S Applications
* demanding the highest level of performance and reliability. Functional Block Diagram
A0
ADDRESS DECODER A14
I/O0 INPUT DATA
CIRCUIT I/O7
CS
OE
CONTROL
WE
CIRCUIT
262,144 BIT MEMORY ARRAY
I/O CONTROL
VCC GND
,
2946 drw 01
1 Aug.06.20
71256S/L CMOS Static RAM 256K (32K x 8-Bit)
Pin Configura
