IDT72V3676 - 3.3 VOLT CMOS TRIPLE BUS FIFO

Integrated Device Technology

The IDT72V3676 by Integrated Device Technology is a 3.3 VOLT CMOS TRIPLE BUS FIFO. Below is the official datasheet preview.

📥 Download Datasheet

IDT72V3676 3.3 VOLT CMOS TRIPLE BUS FIFO by Integrated Device Technology - Datasheet Preview — Official preview page of the **IDT72V3676** 3.3 VOLT CMOS TRIPLE BUS FIFO datasheet (Integrated Device Technology).

Datasheet Details

Part number	IDT72V3676
Manufacturer	Integrated Device Technology
File Size	433.11 KB
Description	3.3 VOLT CMOS TRIPLE BUS FIFO
Datasheet	IDT72V3676_IntegratedDeviceTechnology.pdf

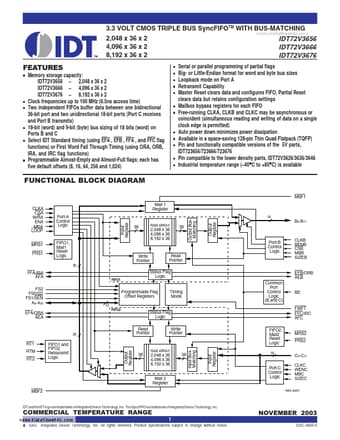

Additional preview pages of the IDT72V3676 datasheet.

IDT72V3676 Product details

Description

The IDT72V3656/72V3666/72V3676 are pin and functionally compatible versions of the IDT723626/723636/723646, designed to run off a 3.3V supply for exceptionally low-power consumption.

Features

ES.
Memory storage capacity: IDT72V3656.
2,048 x 36 x 2 IDT72V3666.
4,096 x 36 x 2 IDT72V3676.
8,192 x 36 x 2 Clock frequencies up to 100 MHz (6.5ns access time) Two independent FIFOs buffer data between one bidirectional 36-bit port and two unidirectional 18-bit ports (Port C receives and Port B transmits) 18-bit (word) and 9-bit (byte) bus sizing of 18 bits (word) on Ports B and C Select IDT Standard timi.
