IDT72V3686, IDT72V36106 Datasheet - Integrated Device Technology

IDT72V3686 3.3 VOLT CMOS TRIPLE BUS SyncFIFO

The IDT72V3686/72V3696/72V36106 are designed to run off a 3.3V supply for exceptionally low-power consumption. These devices are a monolithic, high-speed, low-power, CMOS Triple Bus synchronous (clocked) FIFO memory which supports clock frequencies up to 100 MHz and has read access times as fast as .

IDT72V3686 Features

* Memory storage capacity: IDT72V3686

* 16,384 x 36 x 2 IDT72V3696

* 32,768 x 36 x 2 IDT72V36106

* 65,536 x 36 x 2 Clock frequencies up to 100 MHz (6.5ns access time) Two independent FIFOs buffer data between one b

IDT72V36106_IntegratedDeviceTechnology.pdf

This datasheet PDF includes multiple part numbers: IDT72V3686, IDT72V36106. Please refer to the document for exact specifications by model.

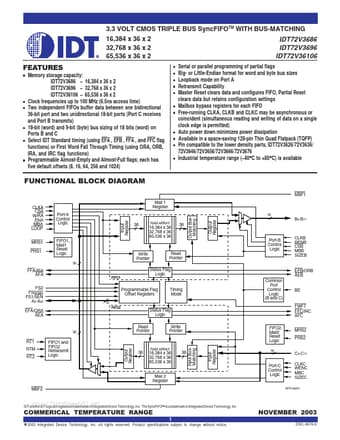

IDT72V3686 Datasheet Preview Page 2 IDT72V3686 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT72V3686, IDT72V36106

Manufacturer:

Integrated Device Technology

File Size:

403.25 KB

Description:

3.3 volt cmos triple bus syncfifo.

Note:

This datasheet PDF includes multiple part numbers: IDT72V3686, IDT72V36106.
Please refer to the document for exact specifications by model.
