IDT74LVCH162244A - 3.3V CMOS 16-BIT BUFFER/DRIVER

IDT74LVCH162244A Description

IDT74LVCH162244A 3.3V CMOS 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS INDUSTRIAL TEMPERATURE RANGE IDT74LVCH162244A 3.3V CMOS 16-BIT BUFFER/DRIVER WI.
The LVCH162244A 16-bit buffer/driver is built using advanced dual metal CMOS technology.

IDT74LVCH162244A Features

* Typical tSK(o) (Output Skew) < 250ps
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
* VCC = 3.3V ± 0.3V, Normal Range
* VCC = 2.7V to 3.6V, Extended Range
* CMOS power levels (0.4μ W typ. static) www. DataSheet4U. co

IDT74LVCH162244A Applications

* 5V and 3.3V mixed voltage systems
* Data communication and telecommunication systems FUNCTIONAL BLOCK DIAGRAM 1OE 1 3OE 25 1A1 47 2 1Y1 3A1 36 13 3Y1 1A2 46 3 1Y2 3A2 35 14 3Y2 1A3 44 5 1Y3 3A3 33 16 3Y3 1A4 43 6 1Y4 3A4 32 17 3Y4 2OE 48 4OE 24

📥 Download Datasheet

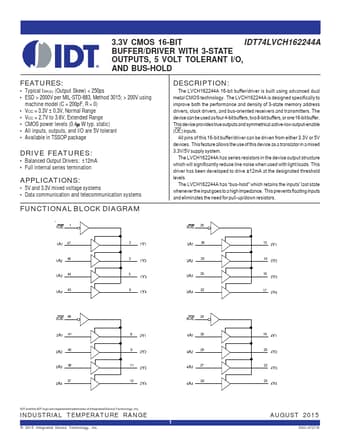

Preview of IDT74LVCH162244A PDF
