IDT82V3155 Datasheet - Integrated Device Technology

ENHANCED T1/E1/OC3 WAN PLL

IDT82V3155 Features

* Supports AT&T TR62411 and Telcordia GR-1244-CORE Stratum 3, Stratum 4 Enhanced and Stratum 4 clock, OC-3 port and 155.52 Mbit/s application

* Supports ITU-T G.813 Option 1 clocks

* Supports ITU-T G.812 Type IV clocks

* Supports ETSI ETS 300 011, TBR 4, TBR 12 and TB

IDT82V3155 General Description

The IDT82V3155 is an enhanced T1/E1/OC3 WAN PLL with dual reference inputs. It contains a Digital Phase-Locked Loop (DPLL), which www.DataSheet4U.com generates low jitter ST-BUS, 19.44 MHz and 155.52 MHz clock and framing signals that are phase locked to an 8 kHz, 1.544 MHz, 2.048 MHz or 19.44 MHz i.

IDT82V3155 Datasheet (474.62 KB)

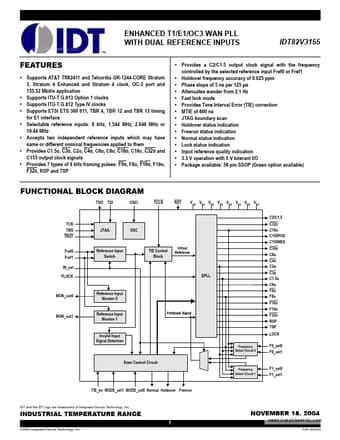

IDT82V3155 Datasheet Preview — Preview of IDT82V3155 PDF

Datasheet Details

Part number:

IDT82V3155

Manufacturer:

Integrated Device Technology

File Size:

474.62 KB

Description:

Enhanced t1/e1/oc3 wan pll.
