IDT82V3001A Datasheet - Integrated Device Technology

WAN PLL

IDT82V3001A Features

* Supports AT&T TR62411 and Telcordia GR-1244-CORE Stratum 4 Enhanced and Stratum 4 timing for DS1 interfaces

* Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 timing for E1 interface

* Selectable input reference signal: 8 kHz, 1.544 MHz or 2.048 MHz

* Provides ei

IDT82V3001A General Description

The IDT82V3001A is a WAN PLL with single reference input. It contains a Digital Phase-Locked Loop (DPLL), which generates ST-BUS clocks and framing signals that are phase locked to a 2.048 MHz, 1.544 MHz or 8 kHz input reference. The IDT82V3001A provides eight types of clock signals (C1.5o, C3o, C6o.

IDT82V3001A Datasheet (152.24 KB)

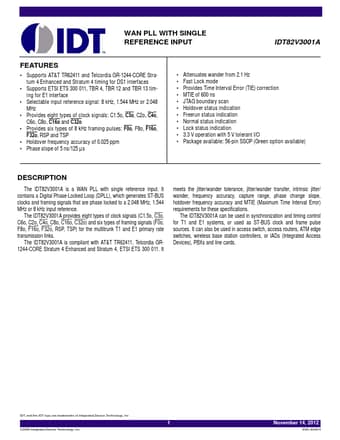

IDT82V3001A Datasheet Preview — Preview of IDT82V3001A PDF

Datasheet Details

Part number:

IDT82V3001A

Manufacturer:

Integrated Device Technology

File Size:

152.24 KB

Description:

Wan pll.
