IDT8SLVD1204I

LVDS Output Fanout Buffer

IDT8SLVD1204I Features

* Four low skew, low additive jitter LVDS output pairs

* Two selectable differential clock input pairs

* Differential PCLK, nPCLK pairs can accept the following differential input levels: LVDS, LVPECL

* Maximum input clock frequency: 2GHz

* LVCMOS/LVTTL interf

IDT8SLVD1204I General Description

The IDT8SLVD1204I is a high-performance differential LVDS fanout buffer. The device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. The IDT8SLVD1204I is characterized to operate from a 2.5V power supply. Guaranteed output-to-output and part-to-part.

IDT8SLVD1204I Datasheet (561.52 KB)

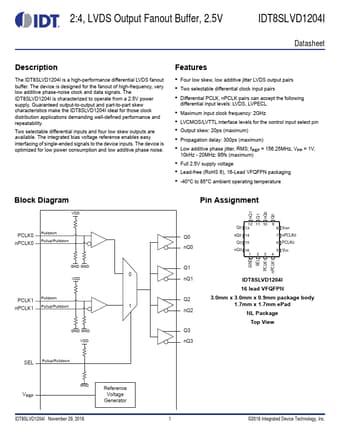

Preview of IDT8SLVD1204I PDF

Datasheet Details

Part number:

IDT8SLVD1204I

Manufacturer:

Integrated Device Technology

File Size:

561.52 KB

Description:

Lvds output fanout buffer.
