IDTF1178NBGI Datasheet, Mixer, Integrated Device Technology

IDTF1178NBGI Features

  • Mixer
  • Dual Path for Diversity Systems
  • Ideal for Multi-Carrier Systems
  • 9dB Gain
  • Ultra linear +37.5dBm IP3O
  • 8.5dB NF
  • 200 Ω output imp

PDF File Details

Part number:

IDTF1178NBGI

Manufacturer:

Integrated Device Technology

File Size:

4.27MB

Download:

📄 Datasheet

Description:

Rf to if dual downconverting mixer. This document describes the specifications for the IDTF1178 Zero-DistortionTM RF to IF Downconverting Dual Mixer. This device is part

Datasheet Preview: IDTF1178NBGI 📥 Download PDF (4.27MB)

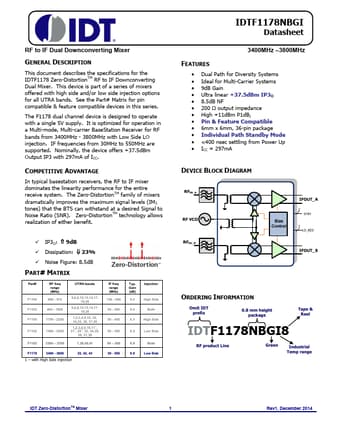

Page 2 of IDTF1178NBGI Page 3 of IDTF1178NBGI

IDTF1178NBGI Application

  • Applications with a broad IF frequency range from 30 MHz to 550 MHz using the standard BOM specified in this datasheet IDT Zero-DistortionTM Mixer
