IDTF1241 - Dual IF Digital Variable Gain Amplifier

IDTF1241 Description

Dual IF Digital Variable Gain Amplifier GENERAL .
The IDTF1241 (1 dB steps) is an IF VGA for Diversity Basestation receivers.

IDTF1241 Features

* Ideal for systems with high SNR requirements
* 20 dB typical Maximum Gain
* 5-bit, 1 dB step, 31 dB gain control range
* Excellent Noise Figure = 4.0 dB
* 5mm x 5mm 32 pin package
* 200 Ω Differential Matched Input
* 200 Ω Differential Matche

IDTF1241 Applications

* Information’ section starting on Page 17 for more details of the benefits of the F1241 in IF sampling receivers. PART# MATRIX Part# F1241 F1240 Range / Step 20 to -11 1.0 20 to -11.5 0.5 IP3O IF freq range NF 48 10 - 500 4 47 10 - 500 4 Pinout Compatibility ADI TI (NSM) ORDERING INFORMATIO

📥 Download Datasheet

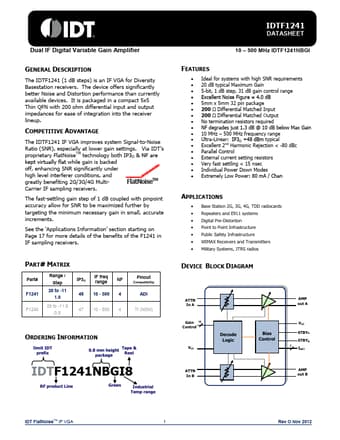

Preview of IDTF1241 PDF
