IDTF1200

Intermediate Frequency Digital Variable Gain Amplifier

Integrated Device Technology

IDTF1200 Features

* Ideal for high SNR systems 22 dB typ Maximum Gain 23 dB gain control range 7 bit parallel control 0.25 dB Gain Steps Excellent Noise Figure < 3.0 dB 5mm x 5mm 28 pin package 200 Ω Differential Input 200 Ω Differentia

IDTF1200 General Description

The IDTF1200 is a Digitally Controlled Intermediate Frequency Differential Variable Gain Amplifier for BaseStation and other commercial applications with a low IF frequency. The device offers extremely low Noise Figure over the entire gain control range. The device is packaged in compact 5x5 Thin QF.

IDTF1200 Datasheet (1.99 MB)

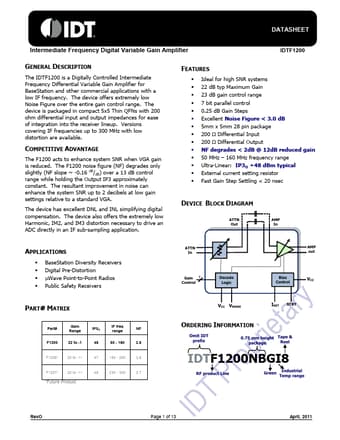

IDTF1200 Datasheet Preview — Preview of IDTF1200 PDF

Datasheet Details

Part number:

IDTF1200

Manufacturer:

Integrated Device Technology

File Size:

1.99 MB

Description:

Intermediate frequency digital variable gain amplifier.
