IDTF1953NCGI8, IDTF1953, 6-bit Digital Step Attenuator

6-bit Digital Step Attenuator 400 to 4000 MHz F1953 Datasheet GENERAL .
This document describes the specification for the IDTF1953 Digital Step Attenuator.

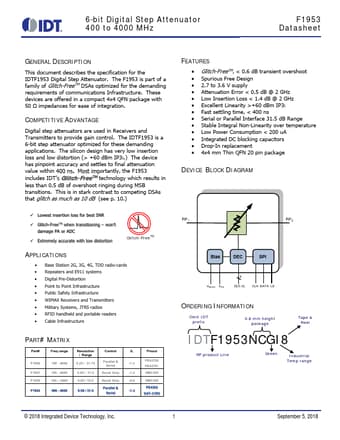

datasheet Preview Page 1 from Datasheet4u.com

IDTF1953-IDT.pdf

IDTF1953NCGI8 Datasheet Preview — This datasheet PDF includes multiple part numbers: IDTF1953NCGI8, IDTF1953. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDTF1953NCGI8, IDTF1953

Manufacturer:

IDT

File Size:

1.63 MB

Description:

6-bit Digital Step Attenuator

Note:

This datasheet PDF includes multiple part numbers: IDTF1953NCGI8, IDTF1953.
Please refer to the document for exact specifications by model.

Features

* Glitch-FreeTM, < 0.6 dB transient overshoot
* Spurious Free Design
* 2.7 to 3.6 V supply
* Attenuation Error < 0.5 dB @ 2 GHz
* Low Insertion Loss < 1.4 dB @ 2 GHz
* Excellent Linearity >+60 dBm IP3I
* Fast settling time, < 400 ns
* Serial or Parallel Interface 31.5

Applications

* The silicon design has very low insertion loss and low distortion (> +60 dBm IP3I. ) The device has pinpoint accuracy and settles to final attenuation value within 400 ns. Most importantly, the F1953 includes IDT’s Glitch-FreeTM technology which results in less than 0.5 dB of overshoot ringing durin
