IDTF1950 7-bit 0.25 dB Digital Step Attenuator

Integrated Device Technology

Description

7-bit 0.25 dB Digital Step Attenuator GENERAL .
This document describes the specification for the IDTF1950 Digital Step Attenuator.

📥 Download Datasheet

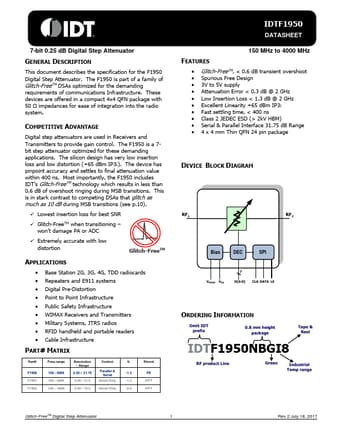

IDTF1950 Datasheet Preview — Preview of IDTF1950 PDF

Datasheet Specifications

Part number: IDTF1950
Manufacturer: Integrated Device Technology
File Size: 2.19 MB
Datasheet: IDTF1950-IntegratedDeviceTechnology.pdf
Description: 7-bit 0.25 dB Digital Step Attenuator

Features

* Glitch-FreeTM, < 0.6 dB transient overshoot
* Spurious Free Design
* 3V to 5V supply
* Attenuation Error < 0.3 dB @ 2 GHz
* Low Insertion Loss < 1.3 dB @ 2 GHz
* Excellent Linearity +65 dBm IP3I
* Fast settling time, < 400 nsec
* Clas

Applications

* The silicon design has very low insertion loss and low distortion (+65 dBm IP3I. ) The device has pinpoint accuracy and settles to final attenuation value within 400 nsec. Most importantly, the F1950 includes IDT’s Glitch-FreeTM technology which results in less than 0.6 dB of overshoot ringing durin
